supplyability: 30 Set/Sets per Monthprice: 2,500 - 900,000
Port: The choice of the port is up to the customers!
Type: Coal Mill
Application: coal crusher, coal mill

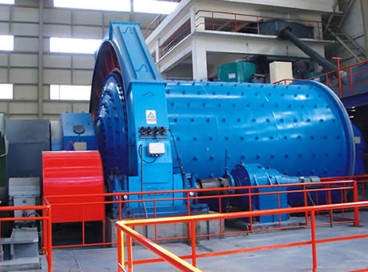

Air-swept Coal Mill is the key equipment of rotary kiln cement clinker production system, also used in thermal power plant,metallurgy, chemical & sugar industry.
The air-swept coal mill produce by our company has the following features:
a.Production continously, high output.
b.Fineness adjustable.
c.Compact structure, running steadily, convenient to install & maintain, long service life.
d.Adaptability to various of materials and grinding coal with different hardness.
1. Weight of grinding media is not included.
2. When placing order, please indicate the motor voltage & driving mode(Dextrorotary or levorotatory type: if no indication, manufacturer will supply equipments in dextrorotary).
| Spec. （m）Item | Φ1.7×2.5 | Φ2.2×4.4 | Φ2.4×4.75 | Φ2.4×4.5+2 | Φ2.6×5.25+2.25 | Φ2.8×5+3 | Φ3.0×6.5+2.5 | Φ3.2×6.75+2 | Φ3.4×6+3 | Φ3.8×7+2.5 | |
| Speed(r/min) | 24.5 | 22.4 | 20.4 | 20.4 | 19.7 | 18.3 | 18.3 | 16.9 | 17.5 | 16.4 | |
| Capacity(t/h) | 3-5 | 8-9 | 12-14 | 11-12 | 13-14 | 16-17 | 19-20 | 25-30 | 28-30 | 38-40 | |
| Feeding Size(mm) | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | |
| Grinding Media Loading(t) | 7.5 | 20 | 22 | 22.5 | 28 | 32 | 43 | 50 | 55 | 80 | |
| Main Reducer | ZD40 | ZD60 | ZD60 | ZD60 | ZD70 MBY450 |
ZD70 MBY500 |
ZD80 MBY560 |
JDX560 | JDX710 | MBY800 | |
| Main Motor(kw) | 95 | 250 | 280 | 315 | 400 | 500 | 630 | 710 | 800 | 1250 | |
| Weight(t) | 29 | 46 | 54 | 76 | 98 | 107 | 124 | 148 | 162 | 215 | |
